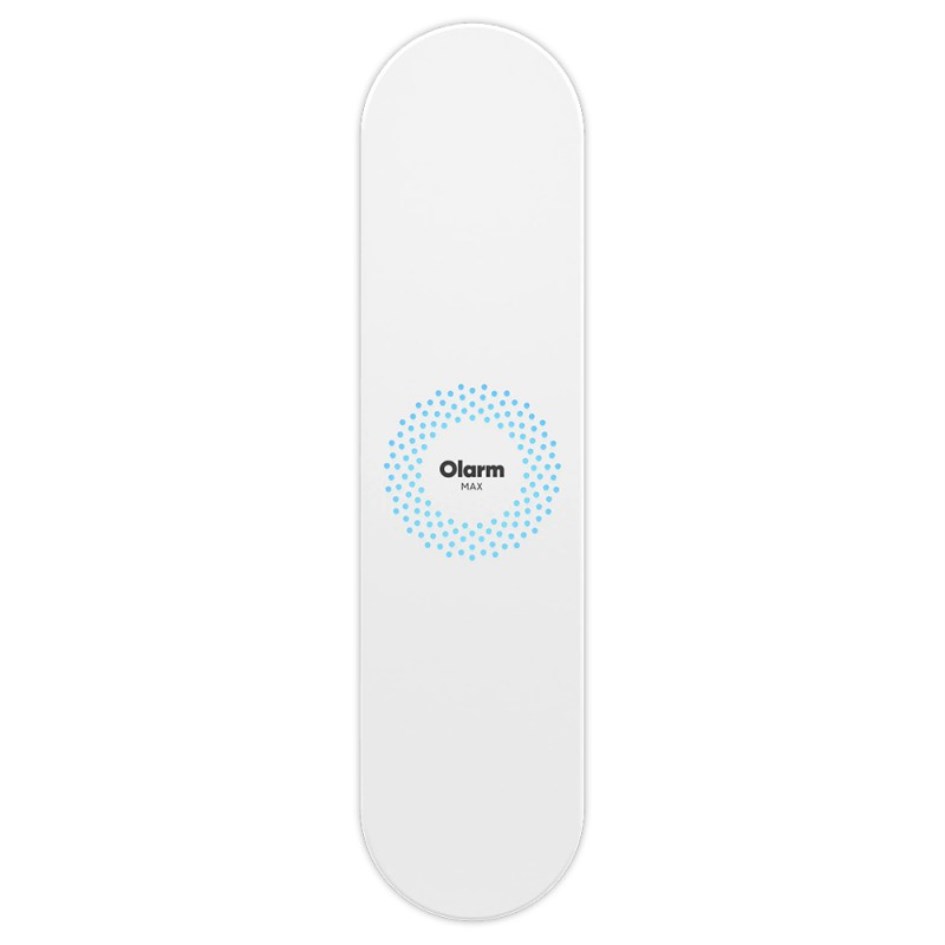

Olarm Max

Olarm MAX is a multi-channel 0G, dual SIM 4G / 2G and WiFi communicator. It enables the monitoring and control of a wide range of security peripherals, enabling users to effectively manage systems, such as alarm panels and electric fences. Olarm MAX requires an active subscription to function. You can purchase a subscription through your installer, Alarm response company or directly in the Olarm APP. For Alarm Panels Paradox: MG5050, MG5050+*, SP6000, SP6000+**, SP65, EVO192 - Minimum panel firmware v1.11.001 - Minimum panel firmware v1.10.004 Texecom: - Elite 24, Elite 48, Elite 64,Elite 64-W, Elite 64-W LIVE, Elite 88, Elite 168, Elite 640 Coming soon IDS 806, X16, X64, X64 Serial Requires an adapter board - sold separately. Orisec: ZP-20, ZP-40, ZP-100 Coming soon Honeywell: Galaxy G2 Coming soon Pyronix: * Coming soon Peripheral connection Protocols: Serial & Keybus depending on peripheral make & model Standard cable length 1.5m Maximum cable length 3m Connectors - 1 x 4 pin white Molex connector - 1 x 5 pin white Molex connector Packaged weight - 195 g Packaged dimensions - 205 x 52 x 46 mm Device weight - 111 g Cable weight - 40 g Device dimensions - 200 x 50 x 20 mm Enclosure material - ABS - Resin MG47F Status indicator: - RGB LED Voltage: - 7 to 24VDC Current: - 100 mA (typical), 250 mA (max) @12 VDC Typically supplied from the alarm panel / electric fence energizer via the cable provided. Please ensure that the power supply can supply at least 300mA. Internal battery - Battery - 3.7V LiPo 1300mAh - 703845 or smaller Connector - JST2 Battery holder dimensions - 8 x 38 x 45 mm Battery not included, sold seperately Mobile connectivity - 4G & 2G Antenna type Tamper proof internal & optional external External antenna connecter SMA Female Tamper protected SMA Male Antenna not included Mobile network switching Typically under 60 seconds depending on coverage & networks. 2G and/or 4G depending on model & coverage. Type Approval may be required in your country / region, please ask our sales team whether your region is currently supported. Olarm MAX A Regions South Africa, Africa & Europe LTE Category 1 LTE-FDD frequency bands B1/3/5/7/8/20/28 GSM frequency bands B3/8 Olarm MAX G Regions Global LTE Category 1 LTE-FDD frequency bands B1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28/66 LTE-TDD frequency bands B34/38/39/40/41 GSM frequency bands B2/3/5/8 SIM Cards South Africa 2 x Olarm managed local SIM cards - Vodacom & MTN UK 2 x Olarm managed SIM cards - EE & KPN World SIM Global 1 x Olarm managed World SIM card Wifi - 2.4GHz WiFi standards 2.4GHz only IEEE 802.11b/g/n Center frequency range of operating channel 2412 ~ 2484 MHz Antenna type Tamper proof internal Data rate - 20MHz 11b: 1, 2, 5.5 and 11 Mbps 11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 11n: MCS0-7, 72.2 Mbps (Max) Data rate - 40MHz 11n: MCS0-7, 150 Mbps (Max) Tx Power 13 to 19.5 dB (Data rate dependent) Rx Sensitivity -69 to -97 dBm (Data rate dependent) Encryption WPA2-PSK WPS set up Yes 0G / LPWAN connectivity Antenna type Tamper proof internal External antenna connecter None Mode Backup to 4G & Wifi 0G technologies LoRaWAN LoRaWAN frequency bands IN865, EU868, AU915, US915, KR920, RU864, AS923-1/2/3/4
